26lb - 220lb Load Force Outdoor Linear Electric Actuator 20mm-1000mm 12/24/36V DC

Brand Name : Linsheng Auto II MaxM

Model Number : LS-PAT-2

Place of Origin : China

MOQ : 1 piece

Price : USD 20~299/PC

Payment Terms : L/C, T/T, PayPal

Supply Ability : 1000pcs/month

Delivery Time : 2 weeks

Packaging Details : Carton

Voltage : DC power supply 12V / 24V

Stroke : 1''~ 39'' ( Customized)

Max. load : 100KG

Max. speed at max. load : 7.6mm/s

Max. speed at no load : 67.5mm/s

Retracted length : ≥ Stroke + 4.13'' (without output signals)

IP rating : IP66M

Output signals : POT / Hall (Optional)

Color : Silver

Working temperature : -25˚C~+65˚C

Contact Now

26lb - 220lb Load Force Outdoor Linear Electric Actuator 20mm-1000mm 12/24/36V DC

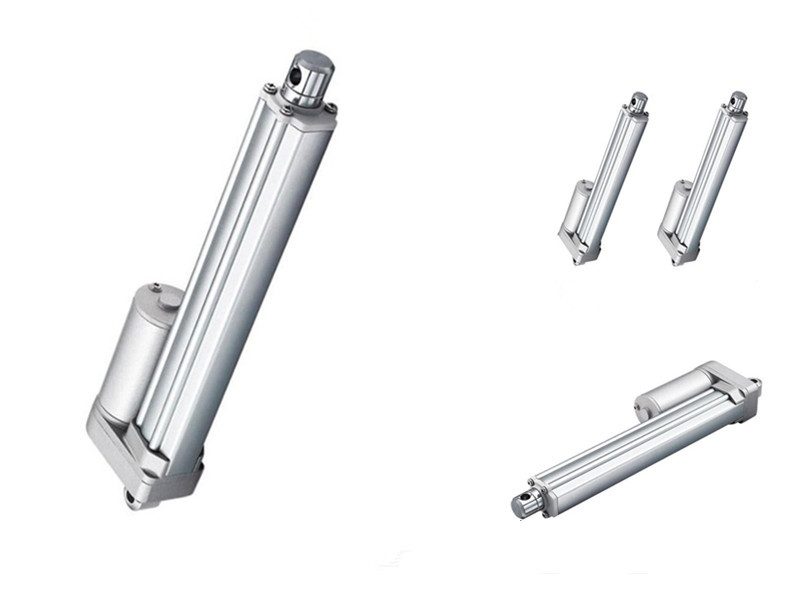

The LS-PAT-2 electric linear actuator epitomizes a blend of sleek design and durability, engineered to excel in outdoor environments. Tailored for tight spaces demanding robust strength and high performance, it features versatile enhancements including feedback sensors, limit switches, and a convenient 90-degree clevis mounting option.

Specification:

  • Voltage: DC power supply 12V / 24V
  • Stroke: 1''~39''
  • Max. load: 100kg (push/pull)
  • Max. speed at max. load: 7.6mm/s
  • Max. speed at no load: 67.5mm/s
  • Retracted length: ≥ Stroke + 105mm (without output signals)
  • IP rating: IP66M
  • Output signals: POT / Hall ( Optional)
  • Color: Silver
  • Operational temperature range: +5˚C~+45˚C
  • The actuators are customized products, the price and parameters for reference only.

Features:

  • Rated IP66M for resistance to water and dust
  • Stroke customizable from 20mm to 1000mm
  • Includes built-in micro switches at both ends
  • Various feedback sensor choices available
  • Features a sturdy and compact design

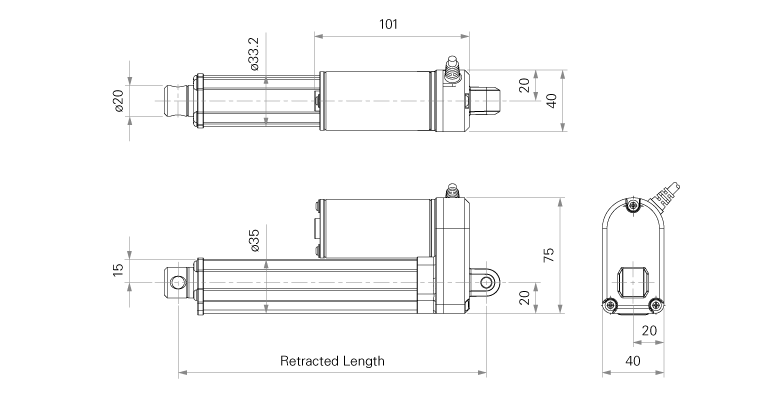

Standard diamension with signal output (mm)

26lb - 220lb Load Force Outdoor Linear Electric Actuator 20mm-1000mm 12/24/36V DC

26lb - 220lb Load Force Outdoor Linear Electric Actuator 20mm-1000mm 12/24/36V DC

About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.

Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
