3-Stage Extruded Aluminum Column 3000N Telescopic Actuator For Medical Equipment

LINSHENG INTERNATIONAL ENTERPRISE CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

3-Stage Extruded Aluminum Column 3000N Telescopic Actuator For Medical Equipment

  • 1
  • 2
  • 3

Brand Name : Linsheng Auto II MaxM

Model Number : LS-RSK-H4+LS-PAT-42

Place of Origin : China

MOQ : 1 piece

Price : 199USD ~ 1999 USD/PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/month

Delivery Time : 2 weeks

Packaging Details : Carton

Voltage : 12V/24VDC (Column); 12V~28V (Controller)

Max. load force : 330KG

Column Outer dimension : 110*110mm square

Stroke : 100mm ~ 600mm

Column color : Silver

Controller Features : Synchronization ; Dual operation ; Safety Protection

Contact Now

3-Stage Extruded Aluminum Column 3000N Telescopic Actuator Synchronize Control System

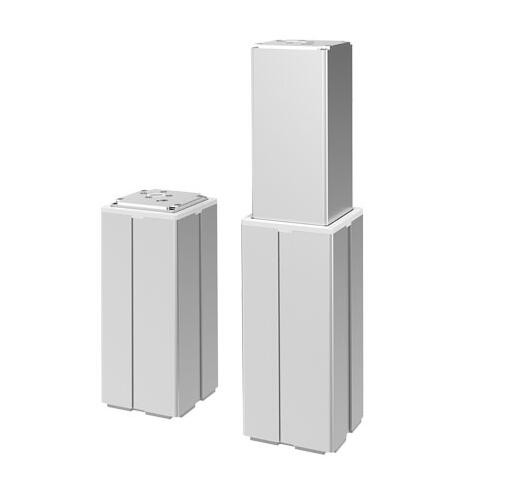

This 3-stage telescopic actuator, constructed from high-strength extruded aluminum, delivers a 3000N load capacity with smooth and stable height adjustments. Designed for precision and durability, compatible with the synchronized control unit LS-RSK-H4 to ensure multiple columns operate in perfect unison. Ideal for medical, industrial, and ergonomic applications requiring high load support and precise motion control.

Features:

Lifting column

-Square profile, 2-stage high quality extruded aluminum

-Stroke is customizable from 100mm to 600mm

-Max. load force up to 3300N (330KG)

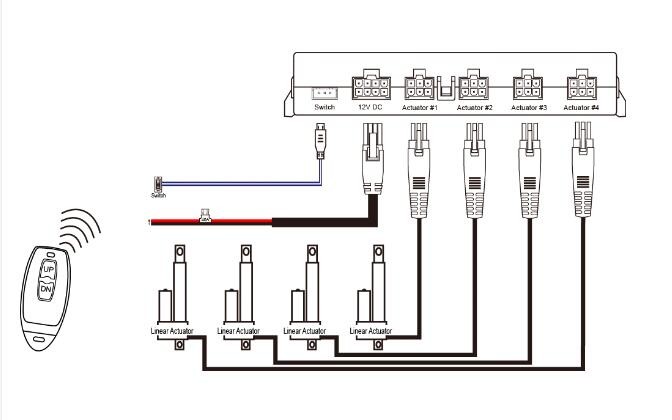

Column controller

- 2CH/3CH/4CH Hall sensor electric actutors synchronization can be done via one unit

- 12V~28VDC in one box

- Plug and play, easy to be operated

Applications:

Operating tables, Dental chairs or other medical examination equipment

Healthcare Therapy Equipment

Adjustable workstation; screen, display platform

Main Specifications:

Controller LS-RSK-H4
Working voltage Wide voltage 12V~28VDC
Currernt 30A work against heavy-duty actuators
Operation Hard-wired switch and remote control
Frequency 433.92MHz
Remote range 50 meters
New remotes Programmable (4 remote at most)
Feature 1 Synchronize multiple Hall effect actuators (2/3/4)
Feature 2 Overcurrent safety protection function
Lifting column LS-PAT-42
Working voltage 12VDC / 24VDC
Max. load 3300N
Max. speed 6.5mm/s ( with load); 36mm/s (no load)
Retracted length ≧Stroke/2 + 188mm
Stroke 100mm ~ 600mm ; 2 stage
Signal output Hall sensors / Pot (Option)
Max. bending moment 200Nm (Dynamic) ; 400Nm(Static)
Color Silver

3-Stage Extruded Aluminum Column 3000N Telescopic Actuator For Medical Equipment

3-Stage Extruded Aluminum Column 3000N Telescopic Actuator For Medical Equipment3-Stage Extruded Aluminum Column 3000N Telescopic Actuator For Medical Equipment

About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.


Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other
shipping courier you may prefer.
